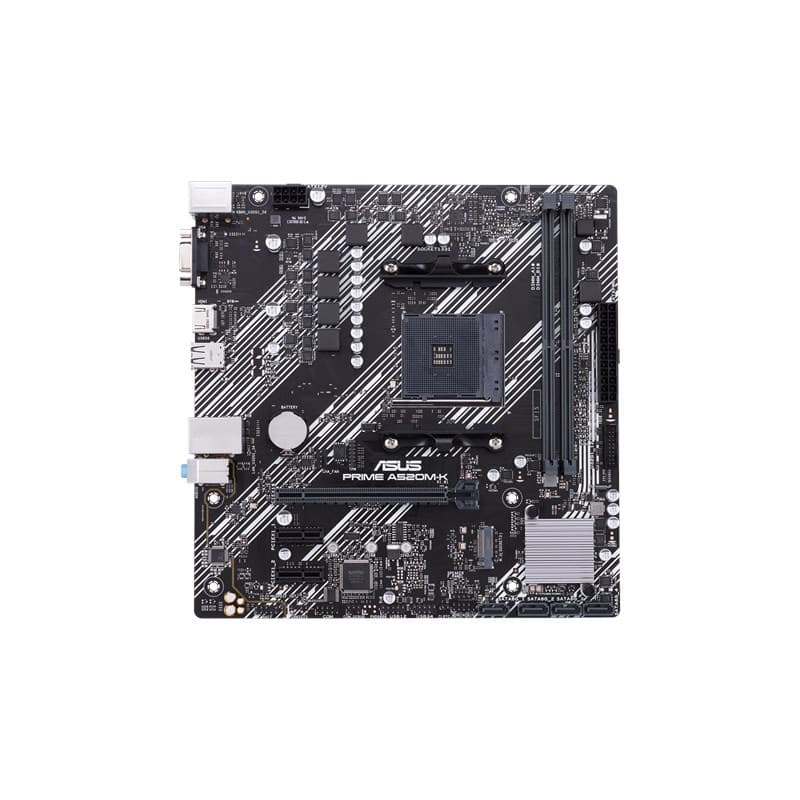

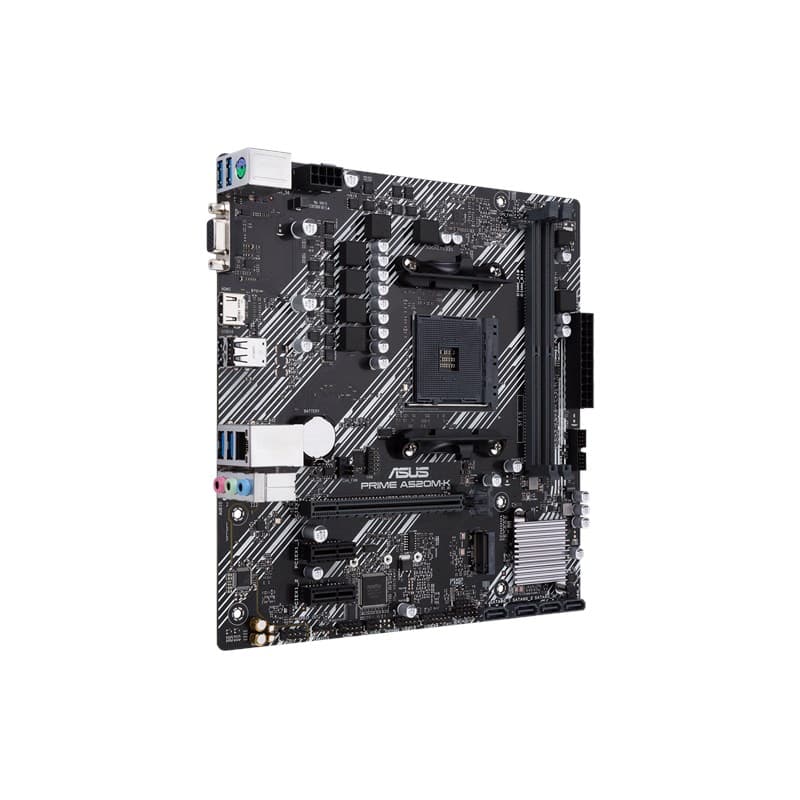

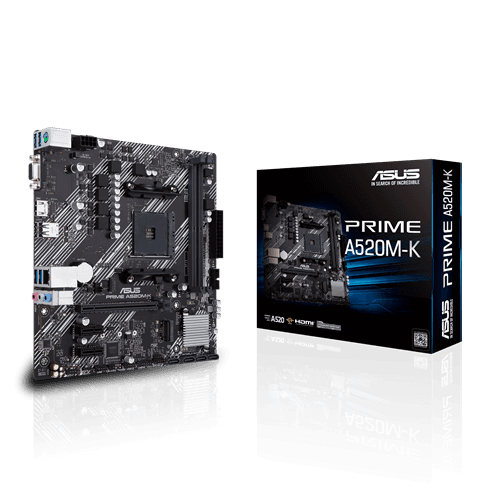

ASUS PRIME A520M-K
Performance & Processor Socket: AMD AM4. Processor Support: Supports Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series desktop processors. Chipset: AMD A520. Memory: 2 x DIMM slots for DDR4 memory, supporting a total capacity of up to 64GB and speeds up to 4866MHz (OC). Storage & Expansion Slots M.2 Storage: 1 x M.2 slot supporting PCIe 3.0 x4 and SATA modes, providing data transfer speeds of up to 32Gbps. SATA Ports: 4 x SATA 6Gb/s ports for additional storage drives. PCIe Slots: 1 x PCIe 3.0 x16 (running from the CPU). 2 x PCIe 3.0 x1 (running from the chipset). Connectivity & Rear I/O Display Outputs: Ideal for processors with integrated graphics (like the 5600G): HDMI 2.1 port (supports 4K@60Hz resolution). D-Sub (VGA) port for older monitors. Networking: Realtek 1Gbps Ethernet with ASUS LANGuard technology for protection against power surges and static electricity. USB: 4 x USB 3.2 Gen 1 ports (Rear) and 2 x USB 2.0 ports. Protection & Cooling (ASUS Special Features) 5X Protection III: Multiple hardware safeguards including LANGuard, Overvoltage Protection, and a Stainless-Steel Back I/O. Fan Xpert: Intelligent fan control to ensure the system stays cool while maintaining low noise levels. SafeSlot Core: A reinforced PCIe slot design that provides stronger retention and shearing resistance for heavy graphics cards.
Spécifications
- socket
- AM4
- support
- AMD Ryzen™ 1000 / Ryzen™ 2000 / Ryzen™ 3000 / Ryzen™ 4000 / Ryzen™ 5000 Series Processors
- type
- mother board
